High frequency plastic canopy welding machine

Model No: ZG-35KW-F2
Minimum Order: 1 SET
Delivery Time: 15-45 Working Days
Brand Name: SINOPWR
Place of origin: SHENZHEN

Advantages:

1. Machine is lager G-shaped and equipped with Vientiane wheel, which is convenient for the movement of the body.
2. Design G-shaped trough and roller device to facilitate stacking and dragging, and save labor.
3. It has the functions of manual/automatic operation.
4. Equipped with a self-made square hf bucket oscillating tube, with high output, stable current and low electric field radiation.
5. Equipped with finely ground guide posts and hollow-out case, which is more convenient for equipment operation.
6. Equipped with highly sensitive spark protection system and overcurrent protection device to protect the equipment and its supporting facilities.

APPLICATIONS:

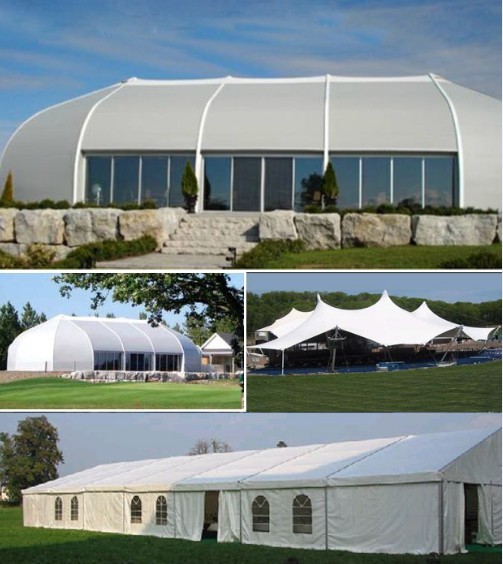

It is especially designed for procession on welding tarpaulin,sunshade,painting canvas,film curtain,advertising ,spark protection cloth ,tent of truck, canvas of agricultural,canopy, large of PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, tent Canvas shade etc

Model	ZG-15KW-F2	ZG-25KW-F2	ZG-35KW-F2
Power	15W	25W	35KW
Input power	25KVA	35KVA	50KVA
Voltage	3Phase 220v/380V 50/60HZ or customized
Frequency	27.12MHz
Rectifier	silicon diode
Oscillation tube	8T85RB	8T25RB	8T87RB
Max pressure	1000kg	1200kg	1500kg
Operation mode	pneumatic
Max distance of electrodes	150mm
The press stroke	150mm
The size of upper electrode	100*1000mm	100*1200mm	100*1500mm
The size of lower electrode	450*1150mm	450*1350mm	450*1650mm
Deep of the throat	1100mm	1150mm	1500mm
The range of temperature	30~200 ℃ adjustable
Welding time	0---10s Adjustable
Productivity	< 300times/hour
